GX15-12X2.5-P Series (In-Line Link, Power Distribution Block, Terminal Block) Power Distribution Box Block
Advantage:
Can be installed vertically or parallel to DIN rail, saving up to 50% of rail space
It can be installed by DIN rail, direct installation or adhesive installation, which is more flexible to use
Time-saving wire connection thanks to tool-free push-in connection technology
Modules can be installed immediately without manual bridging, saving up to 80% of time
Different colors, the wiring is more clear.

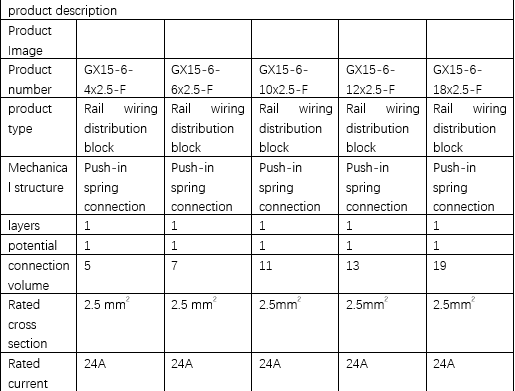

Rated voltage
690V
690V
690V
690V
690V
open side panel
no
no
no
no
no
grounding feet
no
no
no
no
no
other
The connecting rail needs to install the rail foot F-NS35
The connecting rail needs to install the rail foot F-NS35
The connecting rail needs to install the rail foot F-NS35
The connecting rail needs to install the rail foot F-NS35
The connecting rail needs to install the rail foot F-NS35
Application field
Widely used in electrical connection, industrial
Widely used in electrical connection, industrial
Widely used in electrical connection, industrial
Widely used in electrical connection, industrial
Widely used in electrical connection, industrial
color
灰色(gray)、深灰(dark gray)、绿色(green)、黄色(yellow)、米黄色(cream)、橙色(orange)、黑色（black）、红色(red)、蓝色(blue)、白色(white)、紫色(purple)、棕（Brown）、customizable
灰色(gray)、深灰(dark gray)、绿色(green)、黄色(yellow)、米黄色(cream)、橙色(orange)、黑色（black）、红色(red)、蓝色(blue)、白色(white)、紫色(purple)、棕（Brown）、customizable
灰色(gray)、深灰(dark gray)、绿色(green)、黄色(yellow)、米黄色(cream)、橙色(orange)、黑色（black）、红色(red)、蓝色(blue)、白色(white)、紫色(purple)、棕（Brown）、customizable
灰色(gray)、深灰(dark gray)、绿色(green)、黄色(yellow)、米黄色(cream)、橙色(orange)、黑色（black）、红色(red)、蓝色(blue)、白色(white)、紫色(purple)、棕（Brown）、customizable
灰色(gray)、深灰(dark gray)、绿色(green)、黄色(yellow)、米黄色(cream)、橙色(orange)、黑色（black）、红色(red)、蓝色(blue)、白色(white)、紫色(purple)、棕（Brown）、customizable
|
Wiring data |
|||||
|
load contact |
|||||
|
Stripping length |
8mm —10mm |
8mm —10mm |
8mm —10mm |
8mm —10mm |
8mm —10mm |
|
Rigid Conductor Cross Section |
0.14mm2 — 4mm2 |
0.14mm2 — 4mm2 |
0.14mm2 — 4mm2 |
0.14mm2 — 4mm2 |
0.14mm2 — 4mm2 |
|
Flexible conductor cross section |
0.14mm2 — 2.5mm2 |
0.14mm2 — 2.5mm2 |
0.14mm2 — 2.5mm2 |
0.14mm2 — 2.5mm2 |
0.14mm2 — 2.5mm2 |
|
Rigid Conductor Cross Section AWG |
26-12 |
26-12 |
26-12 |
26-12 |
26-12 |
|
Flexible Conductor Cross Section AWG |
26-14 |
26-14 |
26-14 |
26-14 |
26-14 |
|
line contact |
|||||
|
Stripping length |
10mm —12mm |
10mm —12mm |
10mm —12mm |
10mm —12mm |
10mm —12mm |
|
Rigid Conductor Cross Section |
0.5mm2 — 10mm2 |
0.5mm2 — 10mm2 |
0.5mm2 — 10mm2 |
0.5mm2 — 10mm2 |
0.5mm2 — 10mm2 |
|
Flexible conductor cross section |
0.5mm2 — 10mm2 |
0.5mm2 — 10mm2 |
0.5mm2 — 10mm2 |
0.5mm2 — 10mm2 |
0.5mm2 — 10mm2 |
|
Rigid Conductor Cross Section AWG |
20-8 |
20-8 |
20-8 |
20-8 |
20-8 |
|
Flexible Conductor Cross Section AWG |
20-10 |
20-10 |
20-10 |
20-10 |
20-10 |
|
size (this is the dimension of the JUT15F carrying rail foot F-NS35 installed on the rail) |
|||||
|
thickness |
24mm |
29.2mm |
39.6mm |
44.8mm |
60.4mm |
|
width |
45.5mm |
45.5mm |
45.5mm |
45.5mm |
45.5mm |
|
high |
21.7mm |
21.7mm |
21.7mm |
21.7mm |
21.7mm |
|
NS35/7.5 high |
31.1mm |
31.1mm |
31.1mm |
31.1mm |
31.1mm |
|
NS35/15 high |
38.6mm |
38.6mm |
38.6mm |
38.6mm |
38.6mm |
|
NS15/5.5 high |
|
|
|
|
|
|
Material properties |
|||||
|
Flame retardant grade, in line with UL94 |
V0 |
V0 |
V0 |
V0 |
V0 |
|
Insulation Materials |
PA |
PA |
PA |
PA |
PA |
|
Insulation material group |
I |
I |
I |
I |
I |
|
IEC电气参数 IEC Electrical parameters |
|||||
|
测试标准 standard test |
IEC 60947-7-1 |
IEC 60947-7-1 |
IEC 60947-7-1 |
IEC 60947-7-1 |
IEC 60947-7-1 |
|
Rated voltage（III/3） |
690V |
690V |
690V |
690V |
690V |
